R/C Controlled On-Off Switch

Plug this electronic switch into any spare channel on your R/C receiver and instantly have a remote On / Off switch! The switched output is controlled when the R/C channel passes 50% throw.

It can be used in a variety of R/C applications. For example, connect it to a suitable relay and use it to switch between two video camera signals. Or, control low voltage lights on your R/C model or robot. The possibilities are endless.

Notes: The failsafe feature is compatible with standard PPM receivers. It will be ignored if used with DSP, PCM, or Spread Spectrum R/C systems. Also, if the switched output is powered by a separate battery, a common ground connection is required to the R/C system's battery (details are in the instruction manual).

Specifications

Weight: 7 grams.
Operating Voltage: 5VDC max, powered by R/C receiver.
Switched Output: Transistorized type, 30V / 10A max rating.
Compatibility: Most R/C receivers (Failsafe requires PPM Rx).
Servo Cable: Universal R/C type, 6 inches (150mm).
Switch Cable: Silicone wires, 3 inches (80mm).
Manufactured by Turnigy Power Systems.

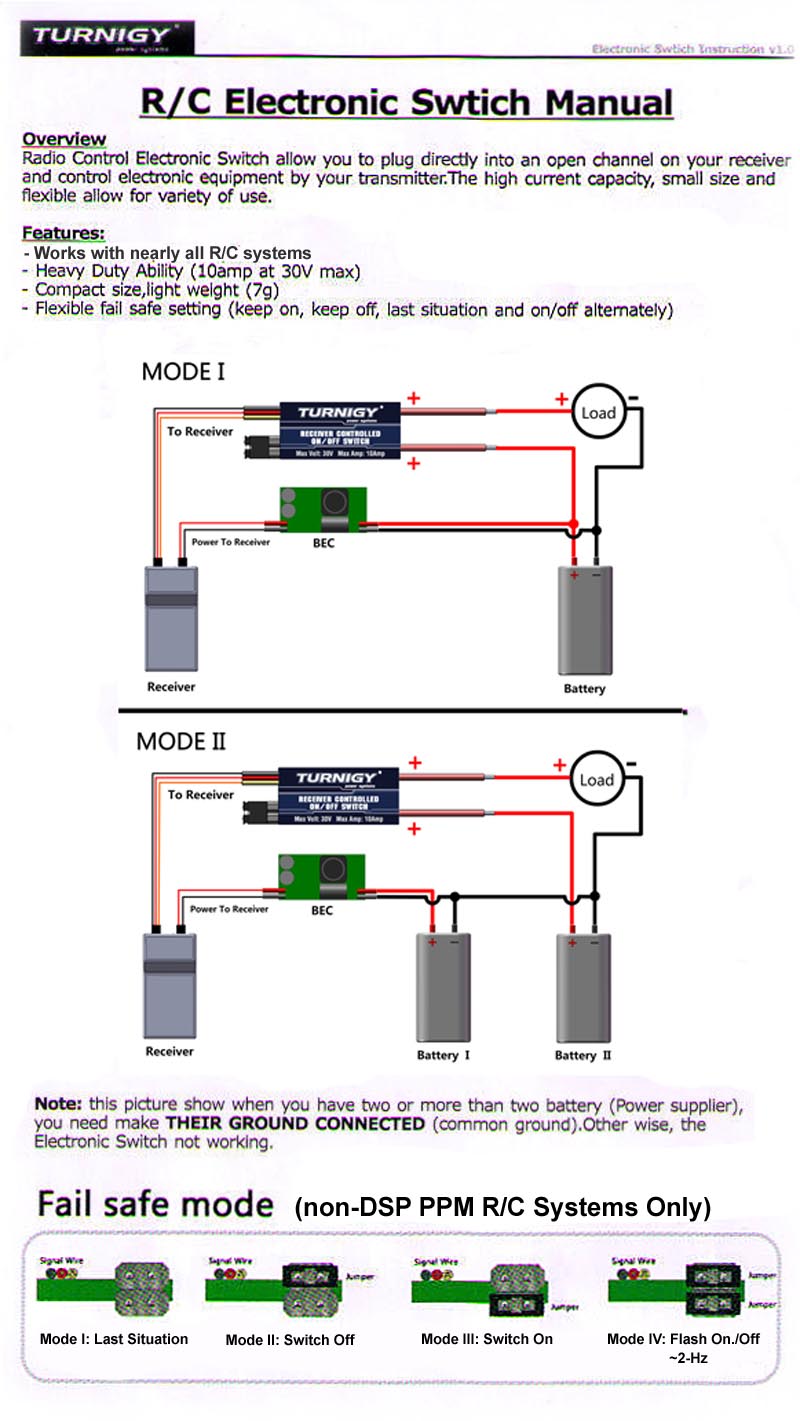

Instructions: Click Me!

Details


SKU	#TRCS-3010
Ship Wt.	0.07 lbs
Price:	$10.95

Options

Quantity

Add to cart

Detailed images
